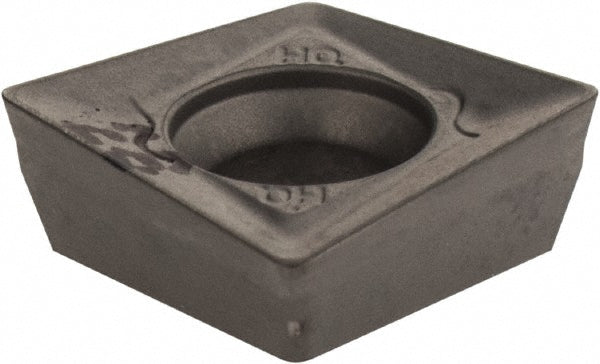

XPMT 100408-HQ Solid Carbide Insert, Grade IC28 - Iscar 5601222

Iscar

XPMT 100408-HQ Solid Carbide Insert, Grade IC28 - Iscar 5601222

MFR# 5601222ISO/ANSI# XPMT 100408-HQCat# XPMT 100408-HQ IC28Series HELIQUAD

$14.22List $18.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5601222 is a XPMT 100408-HQ solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeXPMT 100408-HQ IC28
Chip breakerHQ
Coating processUncoated
Corner radius0.0236
Cutter series compatibilityETS; FDN; FSB; FST; SDN; SSB; E90AC; SPK; F90SP-10; E90SP
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.4020
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100408
Insert styleXPMT
Iso codeXPMT 100408-HQ
Length0.4020
Length range0.4000 to 0.4500
Manufacturers catalog numberXPMT 100408-HQ IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1620
Thickness range0.1500 to 0.1750
Width0.4020
