Iscar

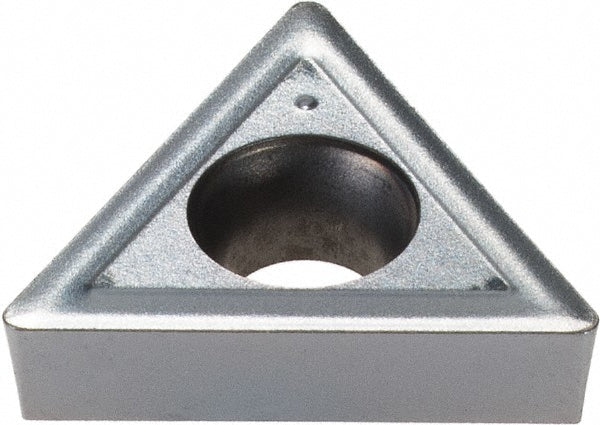

Triangle 1/4" IC Carbide Insert, Grade IC354, TiCN - Iscar 5601292
MFR# 5601292
$13.65List $17.20
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC354
MaterialCarbide
CoatingTiCN
Description
The Iscar 5601292 is a carbide indexable insert, grade IC354, TiCN coated.
Specifications
Chip breaker19
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0157
Included angle60
Inscribed circle in1/4
Insert materialCarbide
Insert shapeTriangle
Insert size code2-1
Insert styleTCMT
Insert thickness0.0937
Manufacturer gradeIC354
Maximum depth of cut0.1181
Relief angle7
Tolerance codeM
