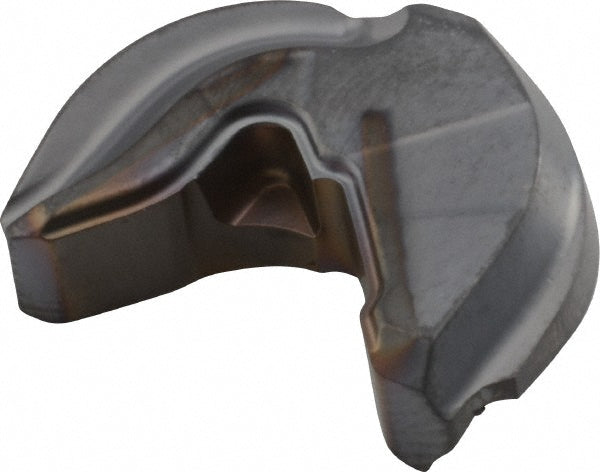

CR D.75-QF Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601321

Iscar

CR D.75-QF Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601321

MFR# 5601321ISO/ANSI# CR D.75-QFCat# CR D.75-QF IC328Series CR

$60.35List $77.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeBall Nose
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601321 is a CR D.75-QF solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeCR D.75-QF IC328
Chip breakerQF
Coating finishTiCN
Coating processPVD
Corner radius in3/8
Cutter series compatibilityCM
Cutting edge effective length0.3750
Cutting edge styleHoned
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.75
Insert size code0.75
Insert styleCR
Iso codeCR D.75-QF
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberCR D.75-QF IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2160
Thickness range0.2000 to 0.2200
Width in3/4
