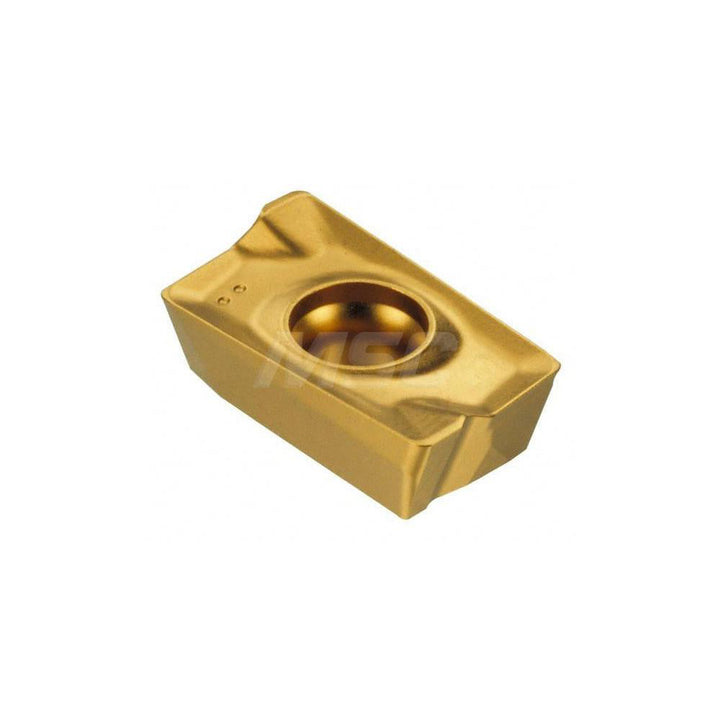

ADKT 150524R-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601348

Iscar

ADKT 150524R-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601348

MFR# 5601348ISO/ANSI# ADKT 150524R-HMCat# ADKT 150524R-HM IC328Series HELIMILL

$23.89List $30.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601348 is a ADKT 150524R-HM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADKT 150524R-HM IC328
Chip breakerHM
Coating finishTiCN
Coating processPVD
Corner radius0.0984
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5430
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150524
Insert styleADKT
Iso codeADKT 150524R-HM
Length0.6140
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 150524R-HM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2200
Thickness range0.2200 to 0.2350
Width0.3770
