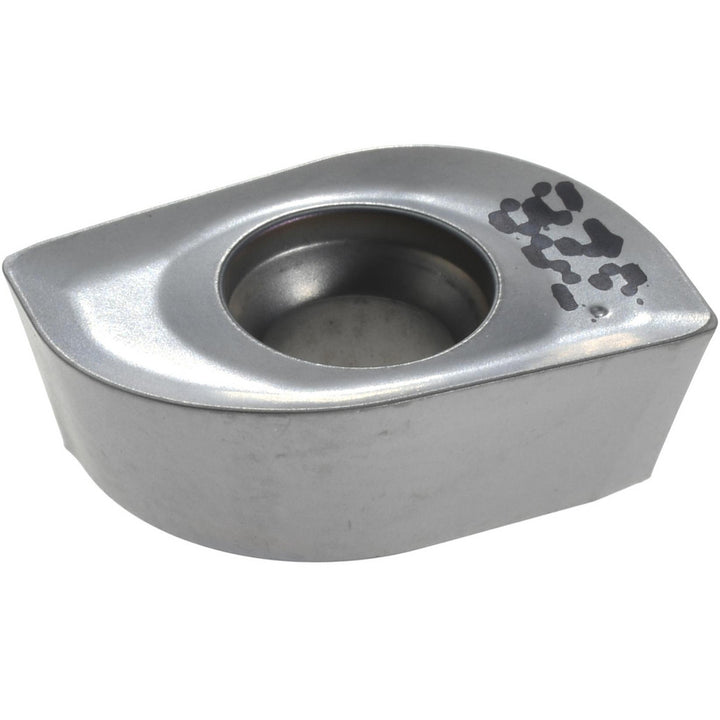

ADKT 150564R-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601351

Iscar

ADKT 150564R-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601351

MFR# 5601351ISO/ANSI# ADKT 150564R-HMCat# ADKT 150564R-HM IC328Series HELIMILL

$23.89List $30.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601351 is a ADKT 150564R-HM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADKT 150564R-HM IC328
Chip breakerHM
Coating finishTiCN
Coating processPVD
Corner radius0.2520
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5200
Cutting edge styleHoned
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150564
Insert styleADKT
Iso codeADKT 150564R-HM
Length0.5830
Length range0.5000 to 0.6000
Manufacturers catalog numberADKT 150564R-HM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.5120
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2090
Thickness range0.2000 to 0.2200
Width0.3768
