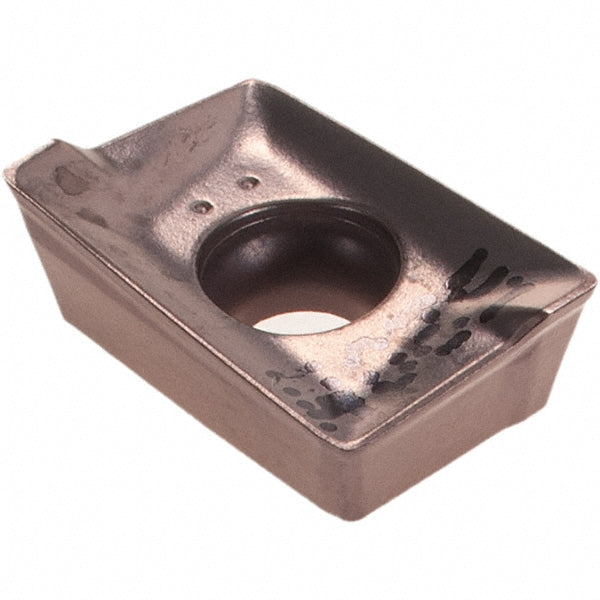

APKT 1003PDTR-RM Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5601369

Iscar

APKT 1003PDTR-RM Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5601369

MFR# 5601369ISO/ANSI# APKT 1003PDTR-RMCat# APKT 1003PDTR-RM IC520MSeries HELIMILL

$16.48List $21.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC520M
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601369 is a APKT 1003PDTR-RM solid carbide indexable insert, grade IC520M, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeAPKT 1003PDTR-RM IC520M
Chip breakerRM
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.3860
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDTR-RM
Length0.4330
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDTR-RM IC520M
Manufacturer gradeIC520M
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle18
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1370
Thickness range0.1250 to 0.1500
Width0.2640
