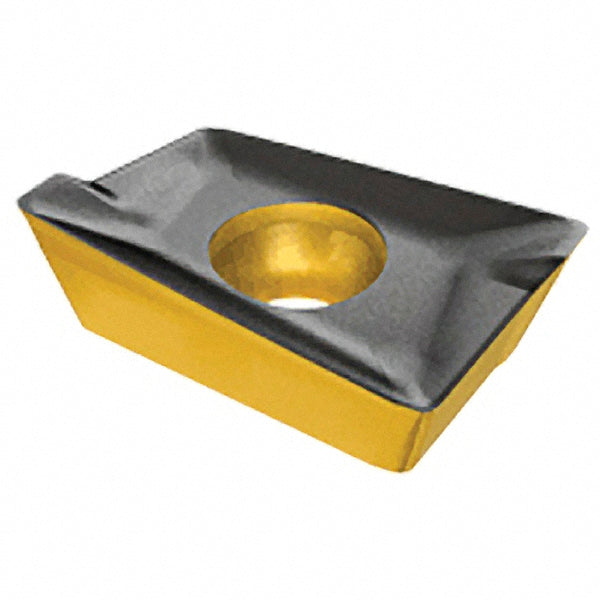

APKT 1003PDTR-RM Cermet Insert, Grade IC30N - Iscar 5601372
MFR# 5601372ISO/ANSI# APKT 1003PDTR-RMCat# APKT 1003PDTR-RM IC30NSeries HELIMILL
$13.50List $17.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC30N
MaterialCermet
Description
The Iscar 5601372 is a APKT 1003PDTR-RM cermet indexable insert, grade IC30N. Suited for steel, stainless steel, hard material.
Specifications
Ansi codeAPKT 1003PDTR-RM IC30N
Chip breakerRM
Coating processUncoated
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.3860
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialCermet
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDTR-RM
Length0.4330
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDTR-RM IC30N
Manufacturer gradeIC30N
Material applicationSteel; Stainless Steel; Hard Material
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Hard Material
RakePositive
Rake angle18
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1370
Thickness range0.1250 to 0.1500
Width0.2640
