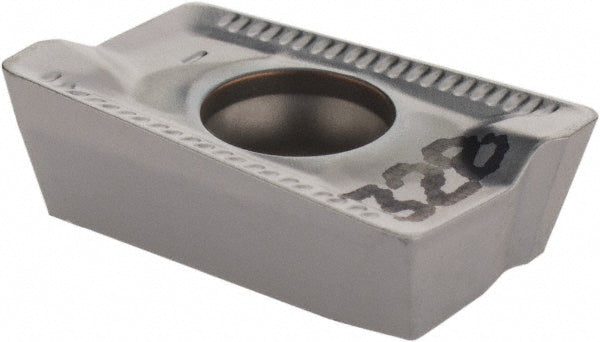

APKT 1604PDR-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601383

Iscar

APKT 1604PDR-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601383

MFR# 5601383ISO/ANSI# APKT 1604PDR-76Cat# APKT 1604PDR-76 IC328Series HELIMILL

$19.21List $24.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601383 is a APKT 1604PDR-76 solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKT 1604PDR-76 IC328
Chip breaker76
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge effective length0.6024
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.3720
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKT
Iso codeAPKT 1604PDR-76
Length0.6811
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKT 1604PDR-76 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5512
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle16
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2087
Thickness range0.2000 to 0.2200
Width0.3720
