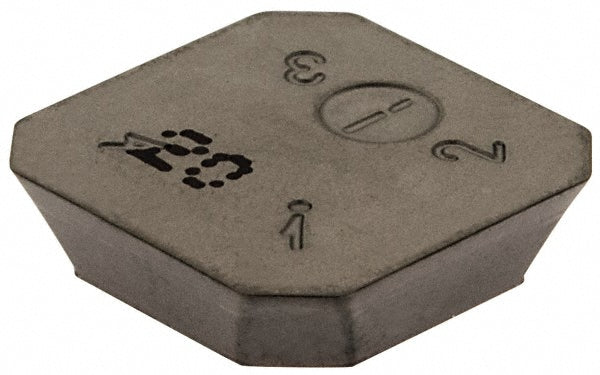

SEK 42 AF-N-42 IC20 Solid Carbide Insert, Grade IC20 - Iscar 5601509

Iscar

SEK 42 AF-N-42 IC20 Solid Carbide Insert, Grade IC20 - Iscar 5601509

MFR# 5601509ISO/ANSI# SEK 42 AF-N-42 IC20Cat# SEK 42 AF-N-42 IC20Series ISCARMILL

$10.64List $13.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC20
MaterialSolid Carbide

Description

The Iscar 5601509 is a SEK 42 AF-N-42 IC20 solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeSEK 42 AF-N-42 IC20
Chip breakerFlat Top
Coating processUncoated
Corner radius0.0000
Cutter series compatibilityF45E
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSEK
Iso codeSEK 42 AF-N-42 IC20
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEK 42 AF-N-42 IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeC2; C3
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
