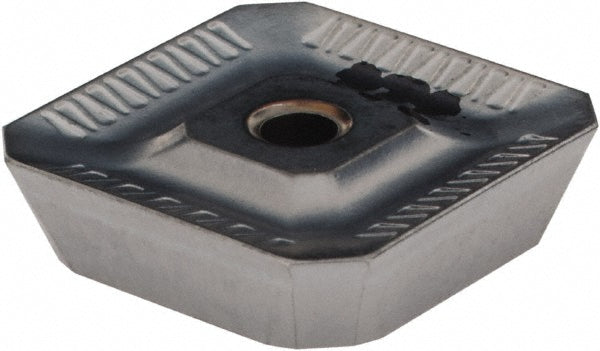

SDKR 1203AU-N-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601564

Iscar

SDKR 1203AU-N-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601564

MFR# 5601564ISO/ANSI# SDKR 1203AU-N-76Cat# SDKR 42AU-N-76 IC328Series HELIQUAD

$14.50List $18.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601564 is a SDKR 1203AU-N-76 solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSDKR 42AU-N-76 IC328
Chip breaker76
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutting edge effective length0.5000
Cutting edge styleSegmented
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSDKR
Iso codeSDKR 1203AU-N-76
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDKR 42AU-N-76 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1290
Thickness range0.1250 to 0.1500
Width in1/2
