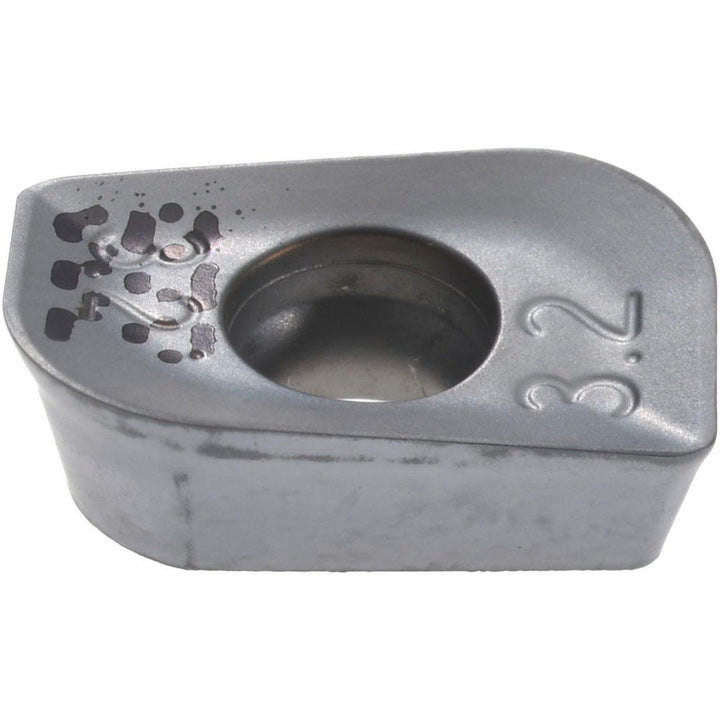

APKT 100332TR-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601617

Iscar

APKT 100332TR-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601617

MFR# 5601617ISO/ANSI# APKT 100332TR-RMCat# APKT 100332TR-RM IC328Series HELIMILL

$21.47List $27.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601617 is a APKT 100332TR-RM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKT 100332TR-RM IC328
Chip breakerRM
Coating finishTiCN
Coating processPVD
Corner radius0.1260
Cutter series compatibilityHM90-10
Cutting edge effective length0.3800
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100332
Insert styleAPKT
Iso codeAPKT 100332TR-RM
Length0.4210
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 100332TR-RM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3620
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1370
Thickness range0.1250 to 0.1500
Width0.2640
