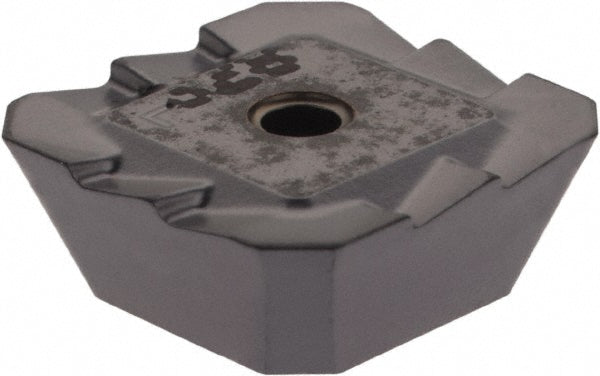

SEKR 1204AFTR-HS Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601621

Iscar

SEKR 1204AFTR-HS Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601621

MFR# 5601621ISO/ANSI# SEKR 1204AFTR-HSCat# SEKR 43AFTR-HS IC328Series ISCARMILL

$22.93List $29.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601621 is a SEKR 1204AFTR-HS solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSEKR 43AFTR-HS IC328
Chip breakerHS
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF45E
Cutting edge effective length0.4972
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEKR
Iso codeSEKR 1204AFTR-HS
Length0.4972
Length range0.4500 to 0.5000
Manufacturers catalog numberSEKR 43AFTR-HS IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2470
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.4969
