Iscar

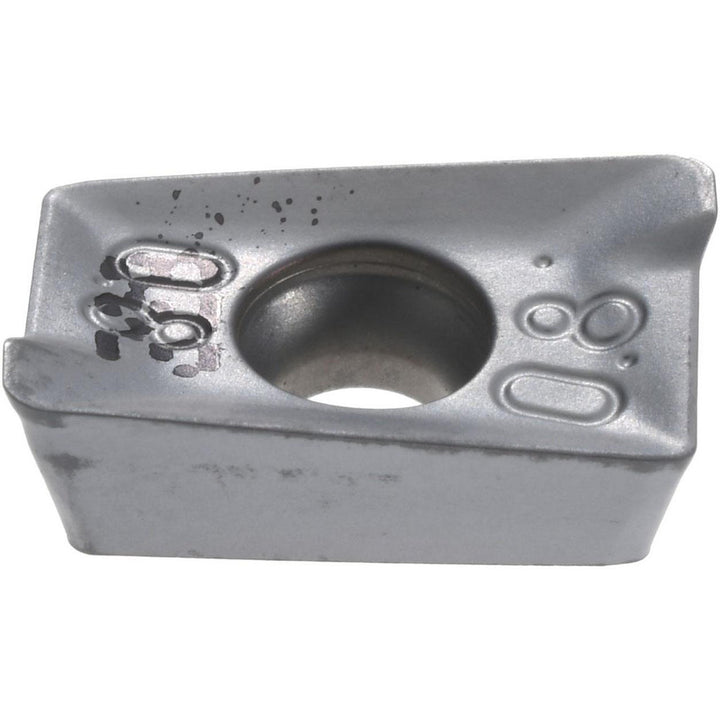

APKT 100308PDTR-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601634
MFR# 5601634ISO/ANSI# APKT 100308PDTR-RMCat# APKT 100308PDTR-RM IC328Series HELIMILL
$21.47List $27.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5601634 is a APKT 100308PDTR-RM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPKT 100308PDTR-RM IC328
Chip breakerRM
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-10
Cutting edge effective length0.3900
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100308
Insert styleAPKT
Iso codeAPKT 100308PDTR-RM
Length0.4330
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 100308PDTR-RM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1370
Thickness range0.1250 to 0.1500
Width0.2640
