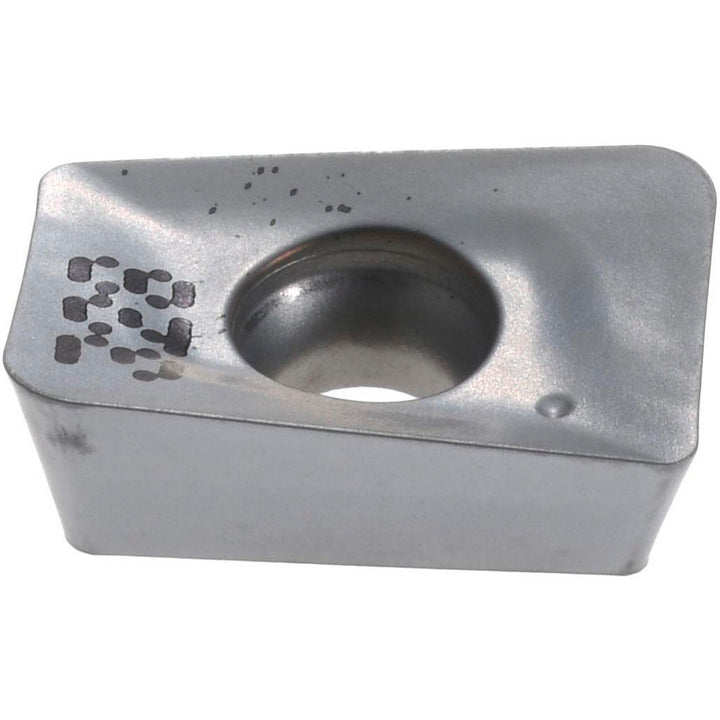

APKT 100312TR-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601637

Iscar

APKT 100312TR-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601637

MFR# 5601637ISO/ANSI# APKT 100312TR-RMCat# APKT 100312TR-RM IC328Series HELIMILL

$21.47List $27.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601637 is a APKT 100312TR-RM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKT 100312TR-RM IC328
Chip breakerRM
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityHM90-10
Cutting edge effective length0.3880
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100312
Insert styleAPKT
Iso codeAPKT 100312TR-RM
Length0.4130
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 100312TR-RM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3620
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1370
Thickness range0.1250 to 0.1500
Width0.2640
