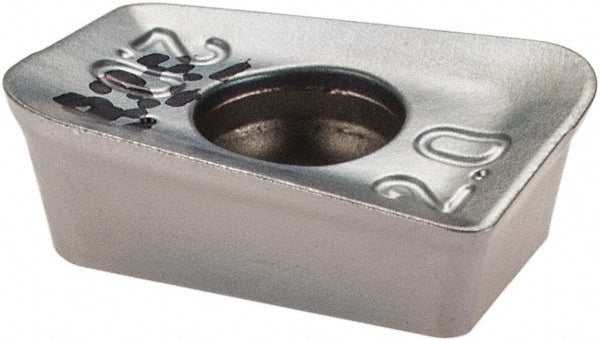

APKT 100320PDTR-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601745
MFR# 5601745ISO/ANSI# APKT 100320PDTR-RMCat# APKT 100320PDTR-RM IC328Series HELIMILL
$21.85List $27.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5601745 is a APKT 100320PDTR-RM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPKT 100320PDTR-RM IC328
Chip breakerRM
Coating finishTiCN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityHM90-10
Cutting edge effective length0.3840
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100320
Insert styleAPKT
Iso codeAPKT 100320PDTR-RM
Length0.4290
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 100320PDTR-RM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3620
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1370
Thickness range0.1250 to 0.1500
Width0.2640
