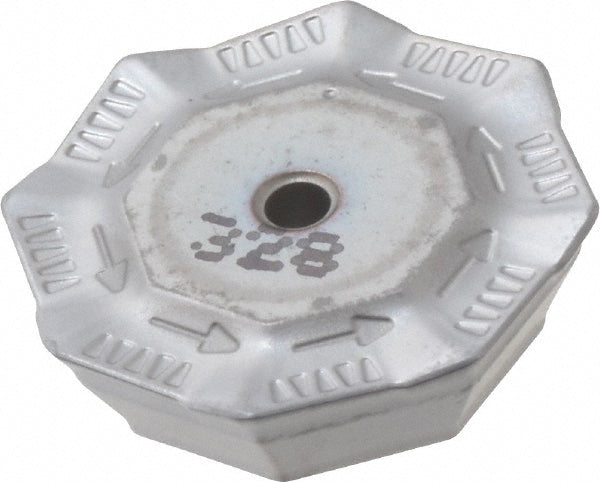

OFMR 0704-AER-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601750

Iscar

OFMR 0704-AER-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601750

MFR# 5601750ISO/ANSI# OFMR 0704-AER-76Cat# OFMR 0704-AER-76 IC328Series HELIOCTO

$19.21List $24.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601750 is a OFMR 0704-AER-76 solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeOFMR 0704-AER-76 IC328
Chip breaker76
Coating finishTiCN
Coating processPVD
Corner radius0.0236
Cutting edge effective length0.2090
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.7008
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code0704
Insert styleOFMR
Iso codeOFMR 0704-AER-76
Length0.7010
Length range0.7000 to 0.9000
Manufacturers catalog numberOFMR 0704-AER-76 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2090
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1790
Thickness range0.1750 to 0.1850
Width0.7008
