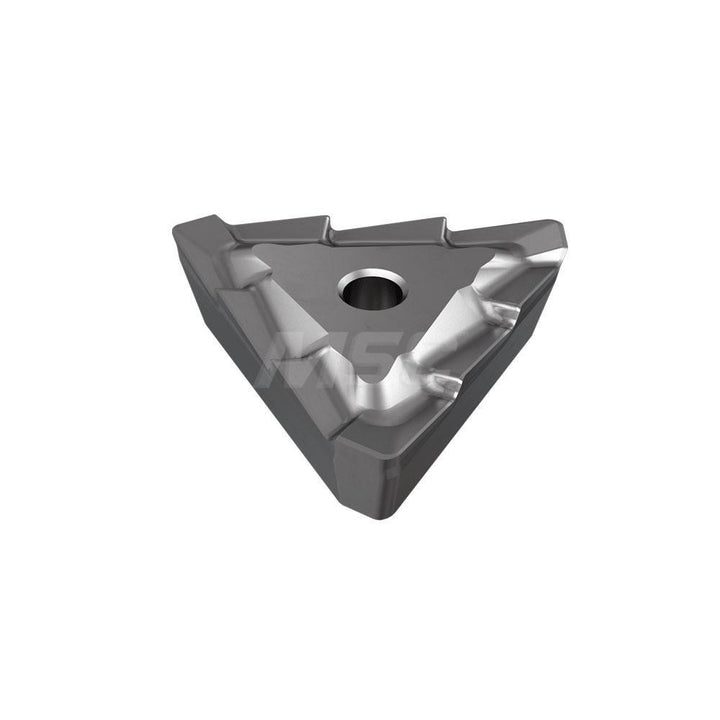

TPKR 2204PD-R-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601816

Iscar

TPKR 2204PD-R-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601816

MFR# 5601816ISO/ANSI# TPKR 2204PD-R-76Cat# TPKR 43PD-R-76 IC328Series ISCARMILL

$21.37List $27.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601816 is a TPKR 2204PD-R-76 solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeTPKR 43PD-R-76 IC328
Chip breaker76
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF90
Cutting edge effective length0.8661
Cutting edge styleHoned
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size4
Insert size code43
Insert styleTPKR
Iso codeTPKR 2204PD-R-76
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberTPKR 43PD-R-76 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.8661
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.8661
