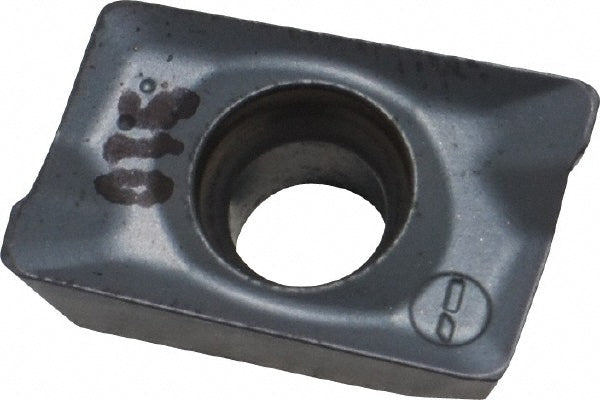

ADKT 1505PDR-HM Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5601900

Iscar

ADKT 1505PDR-HM Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5601900

MFR# 5601900ISO/ANSI# ADKT 1505PDR-HMCat# ADKT 1505PDR-HM IC910Series HELIMILL

$23.89List $30.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5601900 is a ADKT 1505PDR-HM solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeADKT 1505PDR-HM IC910
Chip breakerHM
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5410
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505PDR-HM
Length0.6160
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505PDR-HM IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2220
Thickness range0.2200 to 0.2350
Width0.3770
