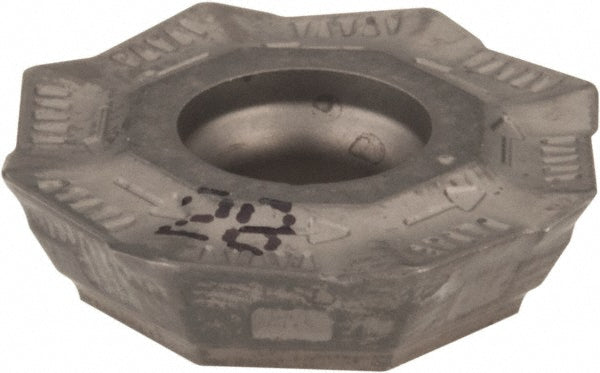

OFMT 07T3-AER-76 Solid Carbide Insert, Grade IC28 - Iscar 5601916

Iscar

OFMT 07T3-AER-76 Solid Carbide Insert, Grade IC28 - Iscar 5601916

MFR# 5601916ISO/ANSI# OFMT 07T3-AER-76Cat# OFMT 07T3-AER-76 IC28Series HELIOCTO

$17.26List $22.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5601916 is a OFMT 07T3-AER-76 solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeOFMT 07T3-AER-76 IC28
Chip breaker76
Coating processUncoated
Corner radius0.0236
Cutter series compatibilityHOF-07
Cutting edge effective length0.1340
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7008
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code07T3
Insert styleOFMT
Iso codeOFMT 07T3-AER-76
Length0.7008
Length range0.7000 to 0.9000
Manufacturers catalog numberOFMT 07T3-AER-76 IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.1340
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1790
Thickness range0.1750 to 0.1850
Width0.7008
