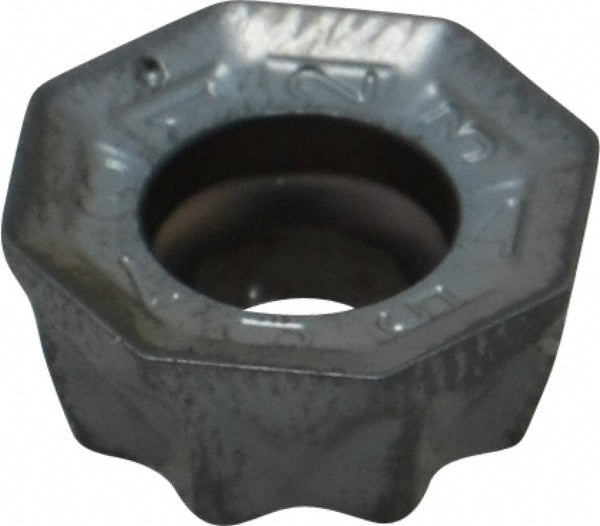

O45MT 050505-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601921

Iscar

O45MT 050505-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601921

MFR# 5601921ISO/ANSI# O45MT 050505-RMCat# O45MT 050505-RM IC328Series CHAMMILL

$18.97List $24.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601921 is a O45MT 050505-RM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeO45MT 050505-RM IC328
Chip breakerRM
Coating finishTiCN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityFDN-CM; ECM; ERCM
Cutting edge effective length0.1300
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.4543
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050505
Insert styleO45MT
Iso codeO45MT 050505-RM
Length0.4540
Length range0.4500 to 0.5000
Manufacturers catalog numberO45MT 050505-RM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.1300
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.4543
