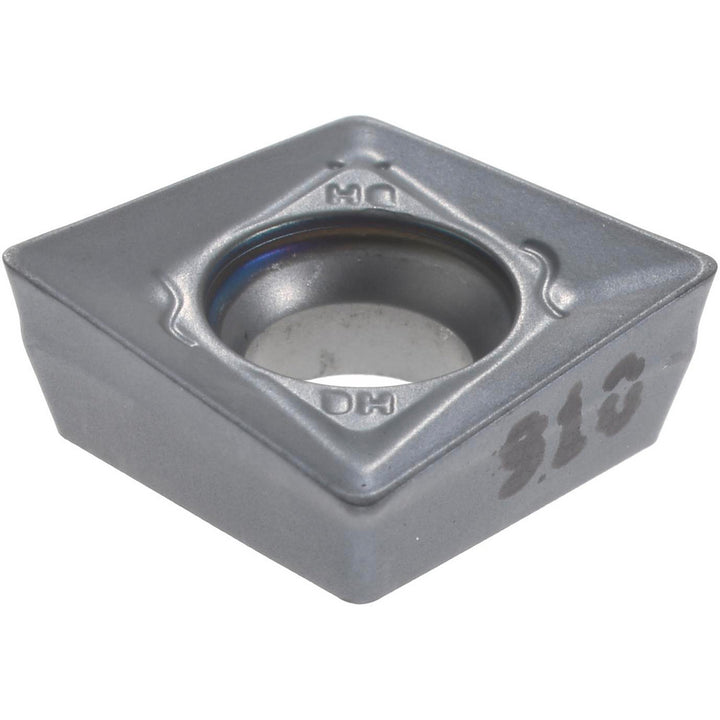

XPMT 100408-HQ Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5601931

Iscar

XPMT 100408-HQ Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5601931

MFR# 5601931ISO/ANSI# XPMT 100408-HQCat# XPMT 100408-HQ IC910Series HELIQUAD

$18.19List $23.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5601931 is a XPMT 100408-HQ solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeXPMT 100408-HQ IC910
Chip breakerHQ
Coating finishAlTiN
Coating processPVD
Corner radius0.0236
Cutter series compatibilityETS; FDN; FSB; FST; SDN; SSB; E90AC; SPK; F90SP-10; E90SP
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.4020
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100408
Insert styleXPMT
Iso codeXPMT 100408-HQ
Length0.4020
Length range0.4000 to 0.4500
Manufacturers catalog numberXPMT 100408-HQ IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1620
Thickness range0.1500 to 0.1750
Width0.4020
