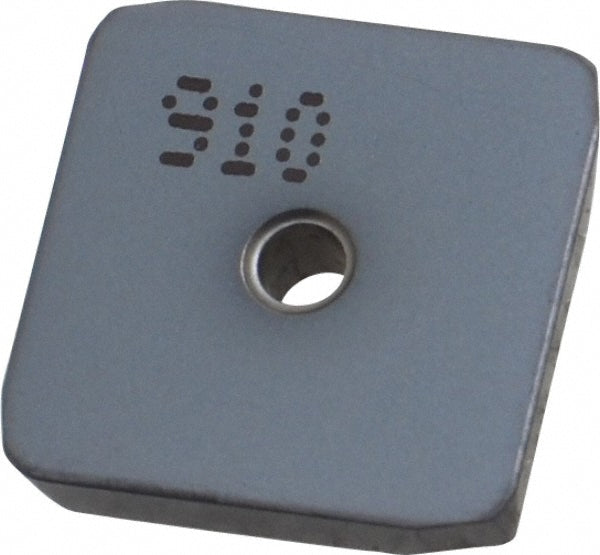

SPKN 1203EDTR Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5601934

Iscar

SPKN 1203EDTR Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5601934

MFR# 5601934ISO/ANSI# SPKN 1203EDTRCat# SPK 42EDTR IC910Series ISCARMILL

$18.32List $23.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5601934 is a SPKN 1203EDTR solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeSPK 42EDTR IC910
Chip breakerFlat Top
Coating finishAlTiN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF75
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSPKN
Iso codeSPKN 1203EDTR
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPK 42EDTR IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.3740
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
