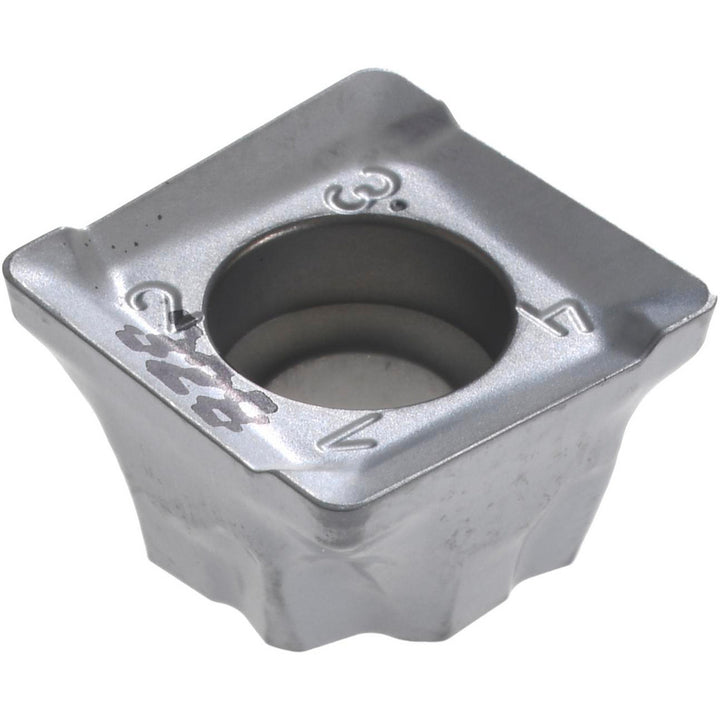

S90MT 1106PC-R Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601941

Iscar

S90MT 1106PC-R Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601941

MFR# 5601941ISO/ANSI# S90MT 1106PC-RCat# S90MT 1106PC-R IC328Series ISCARMILL

$20.77List $26.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601941 is a S90MT 1106PC-R solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeS90MT 1106PC-R IC328
Chip breakerR
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutting edge effective length0.4331
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size1106
Insert size code1106
Insert styleS90MT
Iso codeS90MT 1106PC-R
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog numberS90MT 1106PC-R IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2887
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2362
Thickness range0.2350 to 0.2500
Width0.4331
