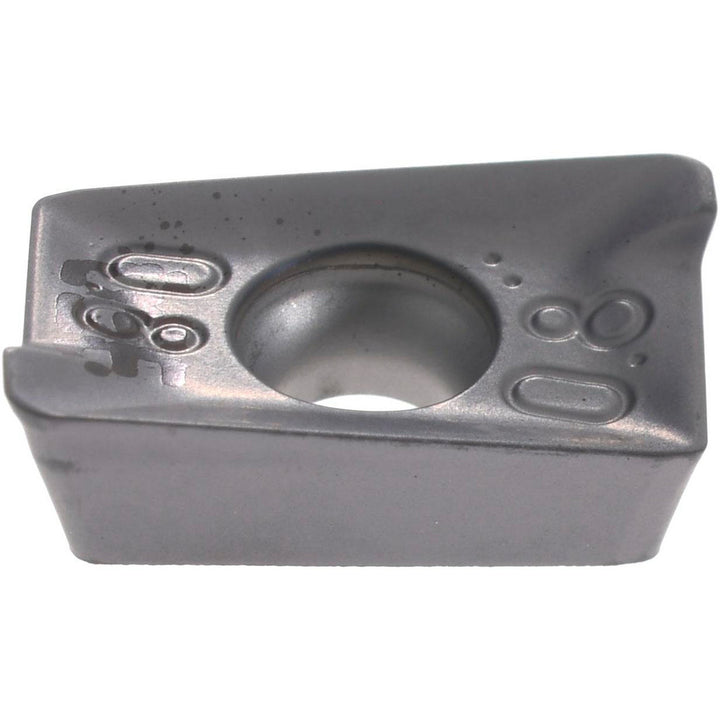

APKT 100308PDTR-RM Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5601963

Iscar

APKT 100308PDTR-RM Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5601963

MFR# 5601963ISO/ANSI# APKT 100308PDTR-RMCat# APKT 100308PDTR-RM IC950Series HELIMILL

$21.47List $27.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC950
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5601963 is a APKT 100308PDTR-RM solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeAPKT 100308PDTR-RM IC950
Chip breakerRM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-10
Cutting edge effective length0.3900
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100308
Insert styleAPKT
Iso codeAPKT 100308PDTR-RM
Length0.4330
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 100308PDTR-RM IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1370
Thickness range0.1250 to 0.1500
Width0.2640
