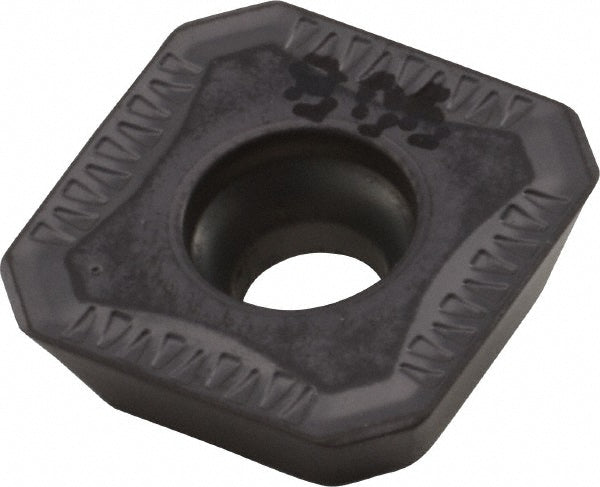

SEMT 12T3AFTN-76 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5602003

Iscar

SEMT 12T3AFTN-76 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5602003

MFR# 5602003ISO/ANSI# SEMT 12T3AFTN-76Cat# SEMT 12T3AFTN-76 IC908Series ISCARMILL

$15.48List $19.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5602003 is a SEMT 12T3AFTN-76 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeSEMT 12T3AFTN-76 IC908
Chip breaker76
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF45ST
Cutting edge effective length0.5177
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5180
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleSEMT
Iso codeSEMT 12T3AFTN-76
Length0.5177
Length range0.5000 to 0.6000
Manufacturers catalog numberSEMT 12T3AFTN-76 IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1460
Thickness range0.1250 to 0.1500
Width0.5177
