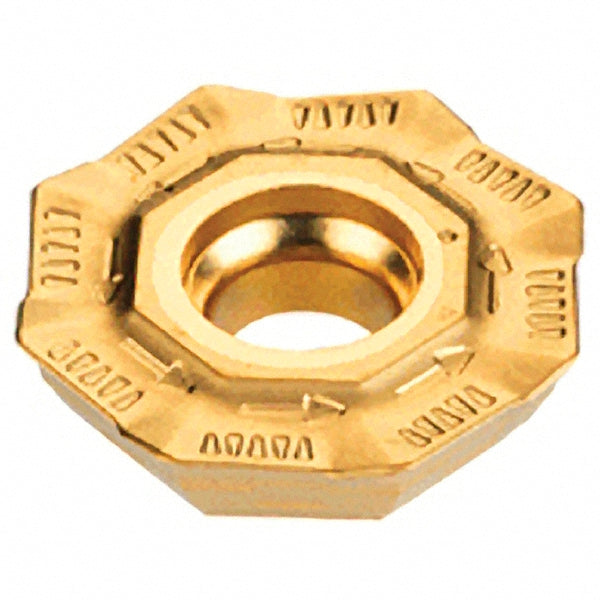

OFMT 07T3-AETN Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5602067
MFR# 5602067ISO/ANSI# OFMT 07T3-AETNCat# OFMT 07T3-AETN IC910Series HELIOCTO
$22.02List $28.20
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC910
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5602067 is a OFMT 07T3-AETN solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi codeOFMT 07T3-AETN IC910
Chip breakerAETN
Coating finishAlTiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityHOF-07
Cutting edge effective length0.1540
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7114
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code07T3
Insert styleOFMT
Iso codeOFMT 07T3-AETN
Length0.7114
Length range0.7000 to 0.9000
Manufacturers catalog numberOFMT 07T3-AETN IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.1540
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1790
Thickness range0.1750 to 0.1850
Width0.7114
