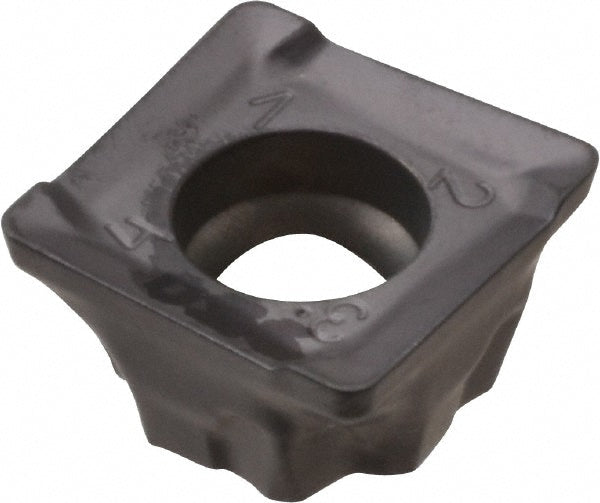

S90MT 1106PC-R Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5602094
MFR# 5602094ISO/ANSI# S90MT 1106PC-RCat# S90MT 1106PC-R IC950Series ISCARMILL
$20.77List $26.60
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC950
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5602094 is a S90MT 1106PC-R solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.
Specifications
Ansi codeS90MT 1106PC-R IC950
Chip breakerR
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutting edge effective length0.4331
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size1106
Insert size code1106
Insert styleS90MT
Iso codeS90MT 1106PC-R
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog numberS90MT 1106PC-R IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.2887
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2362
Thickness range0.2350 to 0.2500
Width0.4331
