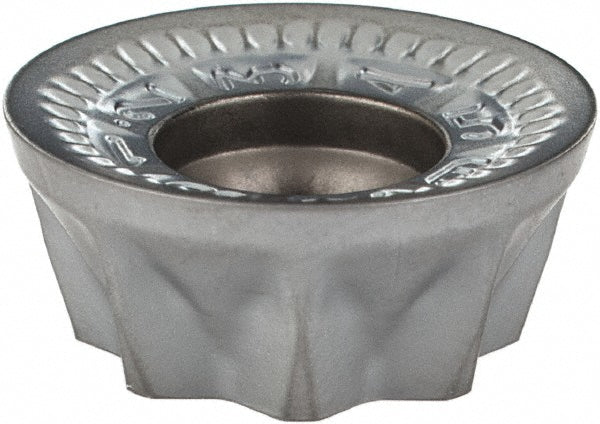

R90MT 43-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602118

Iscar

R90MT 43-RM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602118

MFR# 5602118ISO/ANSI# R90MT 43-RMCat# R90MT 43-RM IC328Series CHAMMILL

$16.79List $21.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5602118 is a R90MT 43-RM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeR90MT 43-RM IC328
Chip breakerRM
Coating finishTiCN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityFDN; ECM; ER-M; ERCM
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size4
Insert size code43
Insert styleR90MT
Iso codeR90MT 43-RM
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberR90MT 43-RM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2500
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2130
Thickness range0.2000 to 0.2200
Width in1/2
