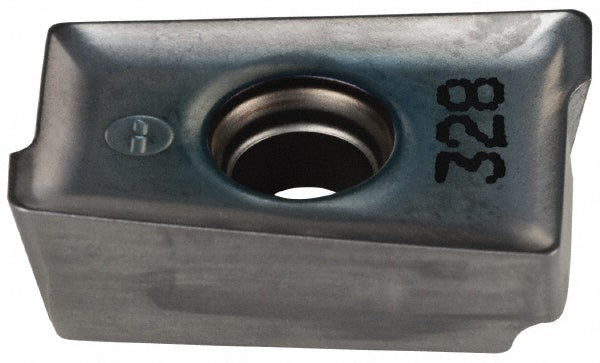

3M AXKT 2006PDTR Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602132
MFR# 5602132ISO/ANSI# 3M AXKT 2006PDTRCat# 3M AXKT 2006PDTR IC328Series MILL2000
$33.81List $43.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/32
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5602132 is a 3M AXKT 2006PDTR solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi code3M AXKT 2006PDTR IC328
Chip breakerPDTR
Coating finishTiCN
Coating processPVD
Corner radius0.0394
Cutter series compatibility3M AX20
Cutting edge effective length0.7950
Cutting edge styleChamfered; Honed
Hole diameter0.1100
Included angle degree85
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size20
Insert size code2006
Insert styleAXKT
Iso code3M AXKT 2006PDTR
Length0.8860
Length range0.7000 to 0.9000
Manufacturers catalog number3M AXKT 2006PDTR IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.7870
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2680
Thickness range0.2500 to 0.3500
Width in17/32
