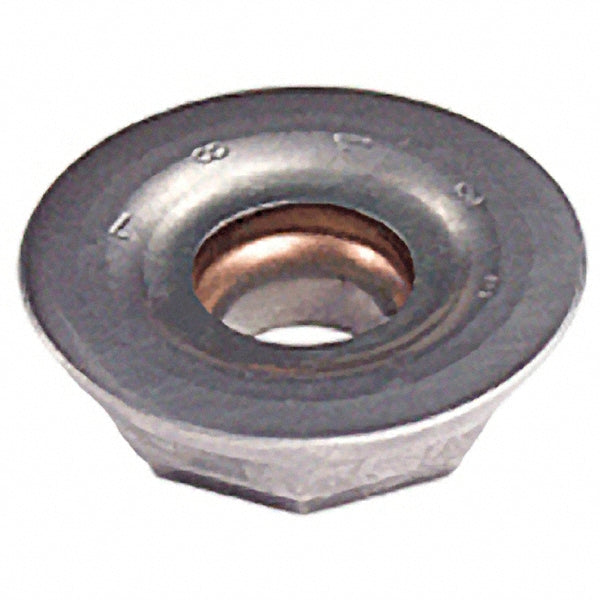

RFMW 1905 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602138

Iscar

RFMW 1905 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602138

MFR# 5602138ISO/ANSI# RFMW 1905Cat# RFMW 1905 IC328Series HELIOCTO

$20.61List $26.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5602138 is a RFMW 1905 solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeRFMW 1905 IC328
Chip breakerFlat Top
Coating finishTiCN
Coating processPVD
Corner radius0.3886
Cutter series compatibilityHOF-07
Cutting edge effective length0.7772
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.7772
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size19
Insert size code1905
Insert styleRFMW
Iso codeRFMW 1905
Length0.7772
Length range0.7000 to 0.9000
Manufacturers catalog numberRFMW 1905 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3886
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2150
Thickness range0.2000 to 0.2200
Width0.7772
