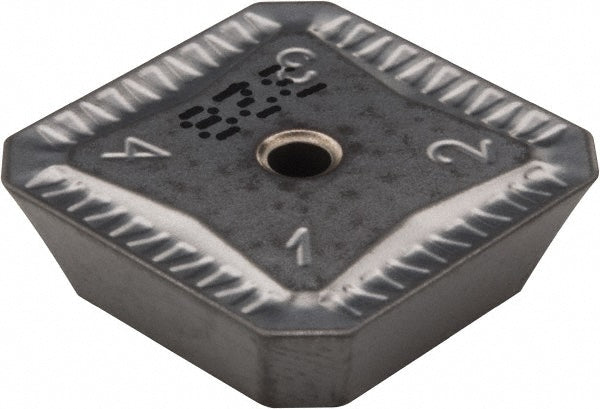

SEKR 1504AFTN-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602196

Iscar

SEKR 1504AFTN-76 Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602196

MFR# 5602196ISO/ANSI# SEKR 1504AFTN-76Cat# SEKR 53AFTN-76 IC328Series ISCARMILL

$21.37List $27.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeSquare
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5602196 is a SEKR 1504AFTN-76 solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSEKR 53AFTN-76 IC328
Chip breaker76
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutting edge effective length0.6252
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size5
Insert size code53
Insert styleSEKR
Iso codeSEKR 1504AFTN-76
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberSEKR 53AFTN-76 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3320
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in5/8
