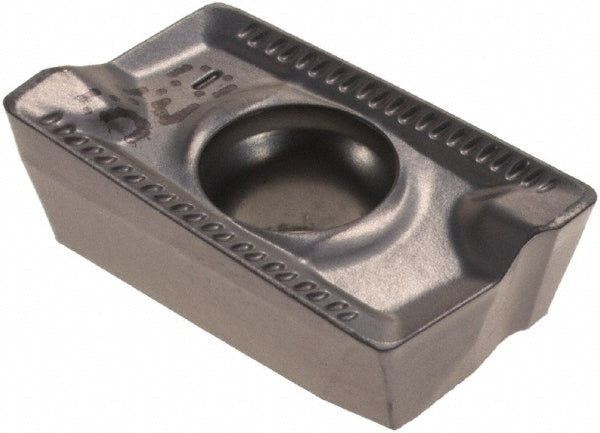

APKT 1604PDR-76 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602364

Iscar

APKT 1604PDR-76 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602364

MFR# 5602364ISO/ANSI# APKT 1604PDR-76Cat# APKT 1604PDR-76 IC928Series HELIMILL

$19.21List $24.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5602364 is a APKT 1604PDR-76 solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKT 1604PDR-76 IC928
Chip breaker76
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge effective length0.6024
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.3720
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKT
Iso codeAPKT 1604PDR-76
Length0.6811
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKT 1604PDR-76 IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5512
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2087
Thickness range0.2000 to 0.2200
Width0.3720
