Iscar

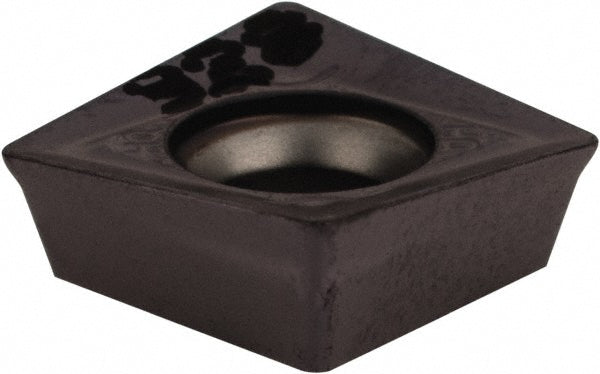

XPMT 100408-HQ Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602370
MFR# 5602370ISO/ANSI# XPMT 100408-HQCat# XPMT 100408-HQ IC928Series HELIQUAD
$18.52List $23.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5602370 is a XPMT 100408-HQ solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXPMT 100408-HQ IC928
Chip breakerHQ
Coating finishTiAlN
Coating processPVD
Corner radius0.0236
Cutter series compatibilityETS; FDN; FSB; FST; SDN; SSB; E90AC; SPK; F90SP-10; E90SP
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.4020
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100408
Insert styleXPMT
Iso codeXPMT 100408-HQ
Length0.4020
Length range0.4000 to 0.4500
Manufacturers catalog numberXPMT 100408-HQ IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1620
Thickness range0.1500 to 0.1750
Width0.4020
