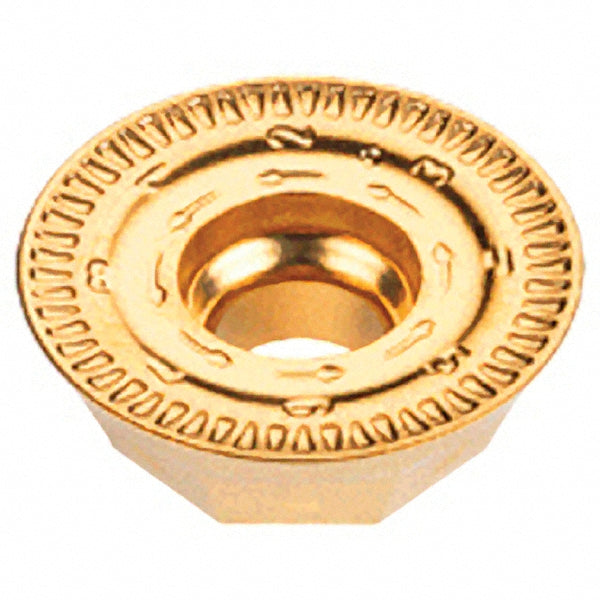

REMT 1505-LM-76 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602371
MFR# 5602371ISO/ANSI# REMT 1505-LM-76Cat# REMT 1505-LM-76 IC928Series HELIOCTO
$16.08List $20.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeRound
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5602371 is a REMT 1505-LM-76 solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeREMT 1505-LM-76 IC928
Chip breaker76
Coating finishTiAlN
Coating processPVD
Corner radius in5/16
Cutter series compatibilityHOF-R06; HOE-R06
Cutting edge effective length0.6248
Cutting edge styleT-Land
Included angle degree360
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size15
Insert size code1505
Insert styleREMT
Iso codeREMT 1505-LM-76
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberREMT 1505-LM-76 IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3124
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2060
Thickness range0.2000 to 0.2200
Width in5/8
