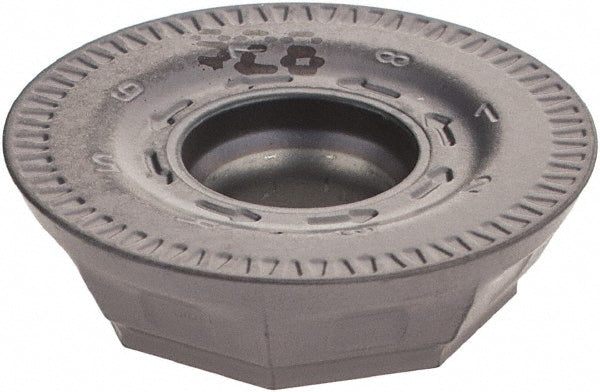

RFMT 1905-LM-76 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602372

Iscar

RFMT 1905-LM-76 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602372

MFR# 5602372ISO/ANSI# RFMT 1905-LM-76Cat# RFMT 1905-LM-76 IC928Series HELIOCTO

$20.61List $26.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5602372 is a RFMT 1905-LM-76 solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeRFMT 1905-LM-76 IC928
Chip breaker76
Coating finishTiAlN
Coating processPVD
Corner radius0.3886
Cutter series compatibilityHOF-07
Cutting edge effective length0.7772
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.7772
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size19
Insert size code1905
Insert styleRFMT
Iso codeRFMT 1905-LM-76
Length0.7772
Length range0.7000 to 0.9000
Manufacturers catalog numberRFMT 1905-LM-76 IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3886
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2160
Thickness range0.2000 to 0.2200
Width0.7772
