Iscar

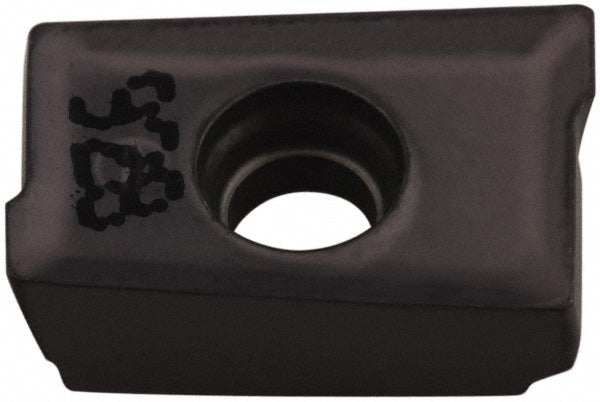

3M AXKT 1304PDR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602381
MFR# 5602381ISO/ANSI# 3M AXKT 1304PDRCat# 3M AXKT 1304PDR IC928Series MILL2000
$23.27List $29.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5602381 is a 3M AXKT 1304PDR solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi code3M AXKT 1304PDR IC928
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibility3M AX13
Cutting edge effective length0.5060
Cutting edge styleHoned
Hole diameter0.1100
Included angle degree85
Inscribed circle0.3310
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size13
Insert size code1304
Insert styleAXKT
Iso code3M AXKT 1304PDR
Length0.5560
Length range0.5000 to 0.6000
Manufacturers catalog number3M AXKT 1304PDR IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle23
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1790
Thickness range0.1750 to 0.1850
Width0.3310
