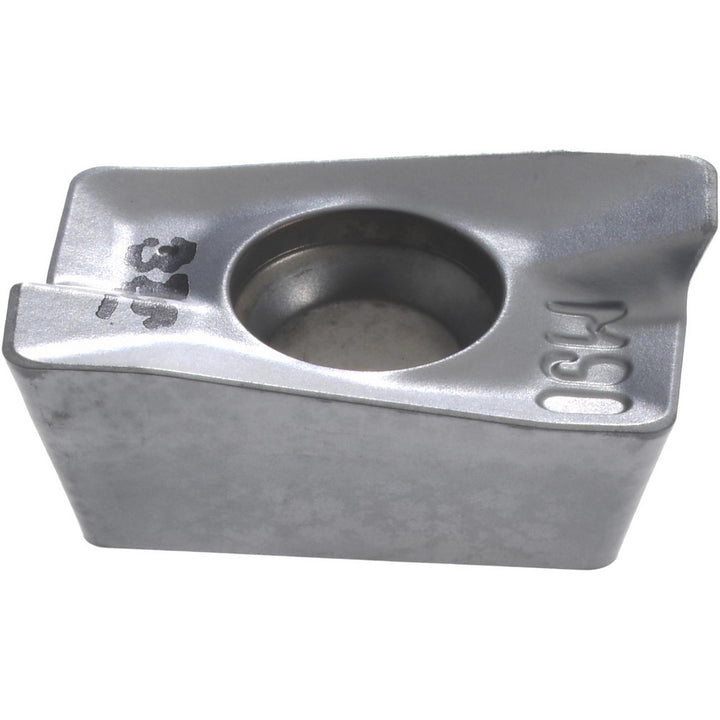

HM90 ADKT 1505PDR Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602383

Iscar

HM90 ADKT 1505PDR Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602383

MFR# 5602383ISO/ANSI# HM90 ADKT 1505PDRCat# HM90 ADKT 1505PDR IC328Series HELI2000

$21.87List $28.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5602383 is a HM90 ADKT 1505PDR solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHM90 ADKT 1505PDR IC328
Chip breakerPDR
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-15
Cutting edge effective length0.5710
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3800
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeHM90 ADKT 1505PDR
Length0.6370
Length range0.6000 to 0.6500
Manufacturers catalog numberHM90 ADKT 1505PDR IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width0.3800
