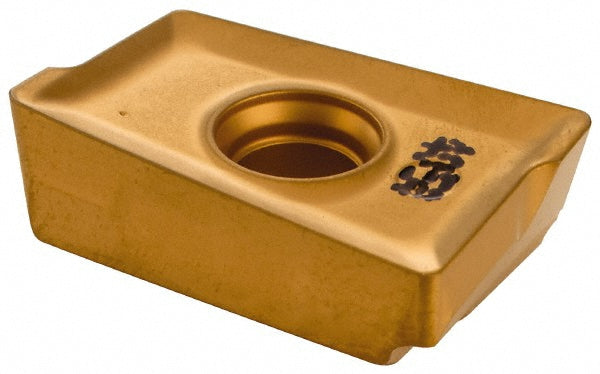

3M AXKT 2006PDTR Solid Carbide Insert, Grade IC4050, TiCN - Iscar 5602400

Iscar

3M AXKT 2006PDTR Solid Carbide Insert, Grade IC4050, TiCN - Iscar 5602400

MFR# 5602400ISO/ANSI# 3M AXKT 2006PDTRCat# 3M AXKT 2006PDTR IC4050Series MILL2000

$32.17List $41.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/32
ShapeParallelogram
GradeIC4050
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5602400 is a 3M AXKT 2006PDTR solid carbide indexable insert, grade IC4050, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi code3M AXKT 2006PDTR IC4050
Chip breakerPDTR
Coating finishTiCN
Coating processMTCVD
Corner radius0.0000
Cutter series compatibility3M AX20
Cutting edge effective length0.7950
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size20
Insert size code2006
Insert styleAXKT
Iso code3M AXKT 2006PDTR
Length0.8860
Length range0.7000 to 0.9000
Manufacturers catalog number3M AXKT 2006PDTR IC4050
Manufacturer gradeIC4050
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeC1; C2; C5; C6
Maximum depth of cut0.7870
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2680
Thickness range0.2500 to 0.3500
Width in17/32
