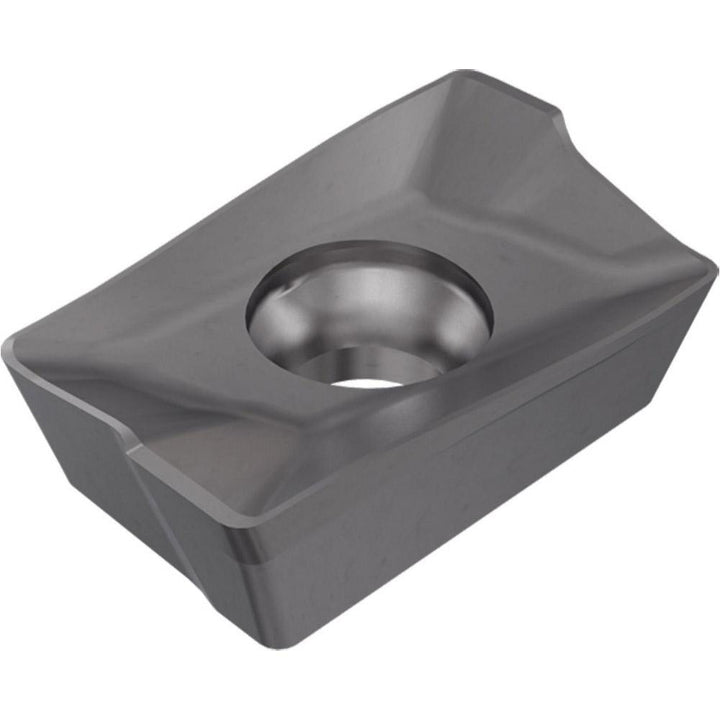

HM90 APKT 1003PDR Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602417
MFR# 5602417ISO/ANSI# HM90 APKT 1003PDRCat# HM90 APKT 1003PDR IC328Series HELI2000
$18.66List $23.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5602417 is a HM90 APKT 1003PDR solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHM90 APKT 1003PDR IC328
Chip breakerPDR
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-10
Cutting edge effective length0.4040
Cutting edge styleHoned
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeHM90 APKT 1003PDR
Length0.4510
Length range0.4500 to 0.5000
Manufacturers catalog numberHM90 APKT 1003PDR IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width in17/64
