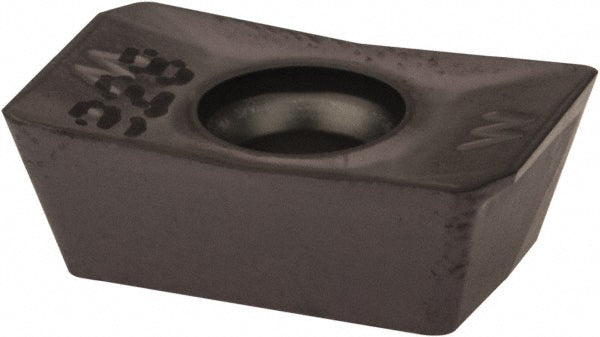

ADKT 1505PD-W Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602441

Iscar

ADKT 1505PD-W Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602441

MFR# 5602441ISO/ANSI# ADKT 1505PD-WCat# ADKT 1505PD-W IC928Series HELIMILL

$27.48List $35.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5602441 is a ADKT 1505PD-W solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADKT 1505PD-W IC928
Chip breakerW
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5760
Cutting edge styleWiper
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505PD-W
Length0.6420
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505PD-W IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.5760
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2200
Thickness range0.2200 to 0.2350
Width0.3770
