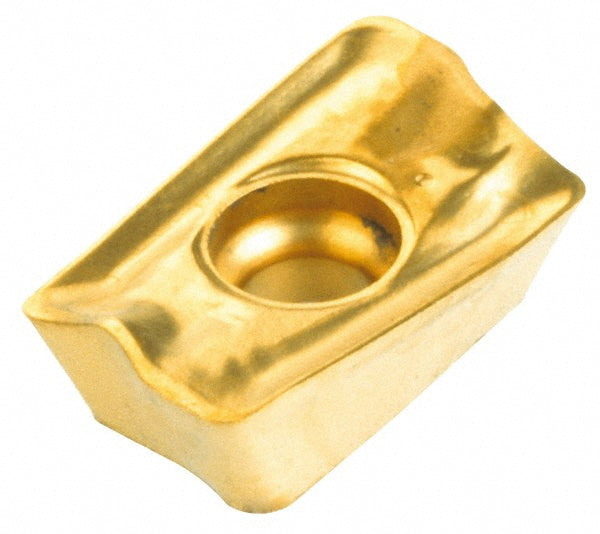

HM90 APKT 1003PDR Solid Carbide Insert, Grade IC4050, TiCN - Iscar 5602491

Iscar

HM90 APKT 1003PDR Solid Carbide Insert, Grade IC4050, TiCN - Iscar 5602491

MFR# 5602491ISO/ANSI# HM90 APKT 1003PDRCat# HM90 APKT 1003PDR IC4050Series HELI2000

$17.88List $22.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC4050
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5602491 is a HM90 APKT 1003PDR solid carbide indexable insert, grade IC4050, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeHM90 APKT 1003PDR IC4050
Chip breakerPDR
Coating finishTiCN
Coating processMTCVD
Corner radius0.0000
Cutter series compatibilityHM90-10
Cutting edge effective length0.4040
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeHM90 APKT 1003PDR
Length0.4510
Length range0.4500 to 0.5000
Manufacturers catalog numberHM90 APKT 1003PDR IC4050
Manufacturer gradeIC4050
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width in17/64
