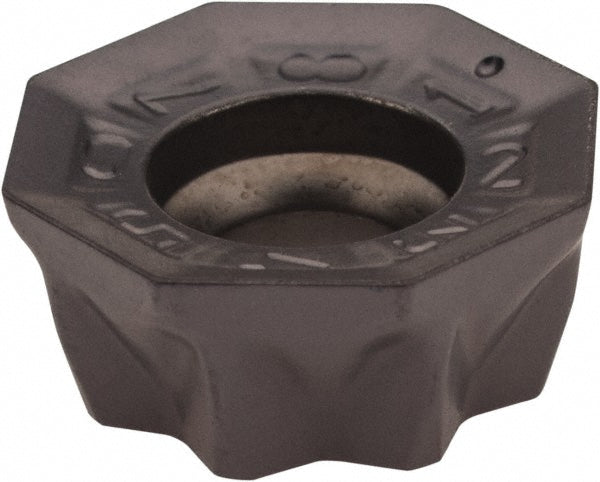

O45MT 050505-RM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602548
MFR# 5602548ISO/ANSI# O45MT 050505-RMCat# O45MT 050505-RM IC928Series CHAMMILL
$19.31List $24.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5602548 is a O45MT 050505-RM solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeO45MT 050505-RM IC928
Chip breakerRM
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityFDN-CM; ECM; ERCM
Cutting edge effective length0.1300
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.4543
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050505
Insert styleO45MT
Iso codeO45MT 050505-RM
Length0.4540
Length range0.4500 to 0.5000
Manufacturers catalog numberO45MT 050505-RM IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.1300
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.4543
