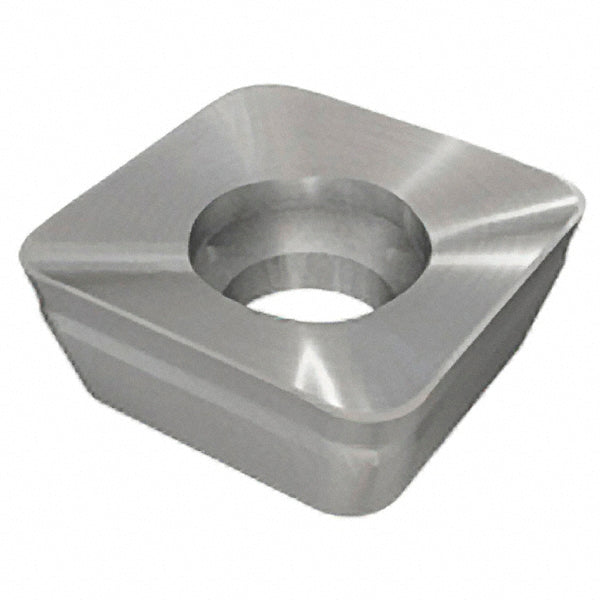

QOMT 060208TN-HQ Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5602563

Iscar

QOMT 060208TN-HQ Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5602563

MFR# 5602563ISO/ANSI# QOMT 060208TN-HQCat# QOMT 060208TN-HQ IC910Series QUAD2000

$17.18List $22.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5602563 is a QOMT 060208TN-HQ solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeQOMT 060208TN-HQ IC910
Chip breakerHQ
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityETS; FDN; SDN; E45X; E90X
Cutting edge effective length0.2110
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2430
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060208
Insert styleQOMT
Iso codeQOMT 060208TN-HQ
Length0.2425
Length range0.0000 to 0.3200
Manufacturers catalog numberQOMT 060208TN-HQ IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.1570
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1010
Thickness range0.1000 to 0.1250
Width0.2425
