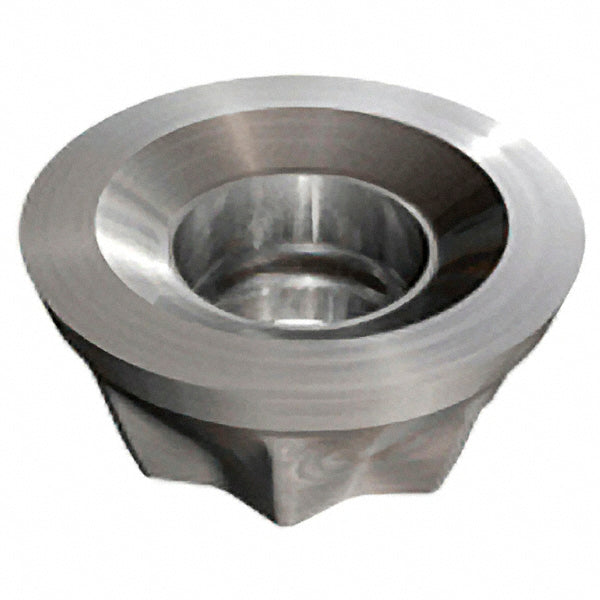

R90CW 43-T Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5602577

Iscar

R90CW 43-T Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5602577

MFR# 5602577ISO/ANSI# R90CW 43-TCat# R90CW 43-T IC908Series CHAMMILL

$20.07List $25.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5602577 is a R90CW 43-T solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeR90CW 43-T IC908
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityECM; ER-M; ERCM
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size4
Insert size code43
Insert styleR90CW
Iso codeR90CW 43-T
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberR90CW 43-T IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2500
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2130
Thickness range0.2000 to 0.2200
Width in1/2
