Carbide Insert, Grade IC908, TiAlN - Iscar 5602587

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5602587

MFR# 5602587Series MM HCR

$65.04List $83.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

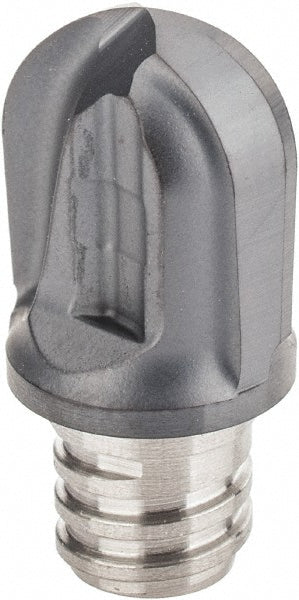

The Iscar 5602587 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.3750
Cutting width0.3750in
Functional length0.4780
Included angle degree90
Insert handRight Hand
Insert size.375
Lead angle90
Length of cut0.3800in
Manufacturers catalog number5602587
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3800
Milling tip full descriptionMM HCR.375-2T06
Milling tip styleMM HCR
Milling tip typeBall Nose
Number of flutes2
Overall length0.4780in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
