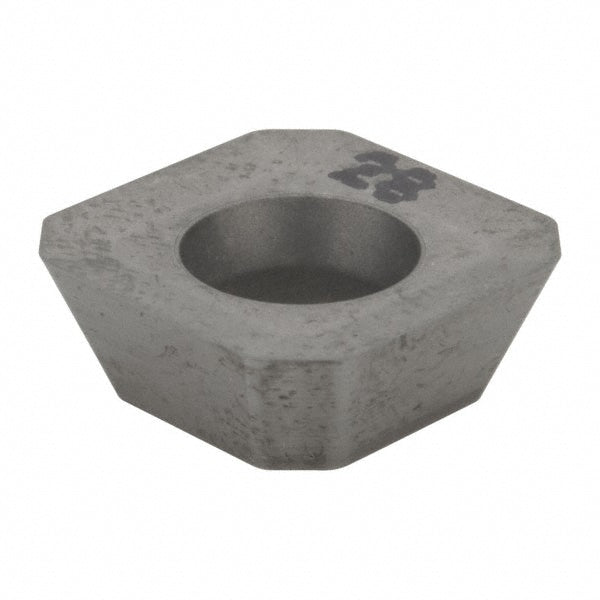

SEHT 1204AFN Solid Carbide Insert, Grade IC28 - Iscar 5602916

Iscar

SEHT 1204AFN Solid Carbide Insert, Grade IC28 - Iscar 5602916

MFR# 5602916ISO/ANSI# SEHT 1204AFNCat# SEHT 43AFN IC28Series ISCARMILL

$19.65List $25.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5602916 is a SEHT 1204AFN solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeSEHT 43AFN IC28
Chip breakerAFN
Coating processUncoated
Corner radius0.0000
Cutter series compatibilityF45ST
Cutting edge effective length0.5000
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEHT
Iso codeSEHT 1204AFN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEHT 43AFN IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in1/2
