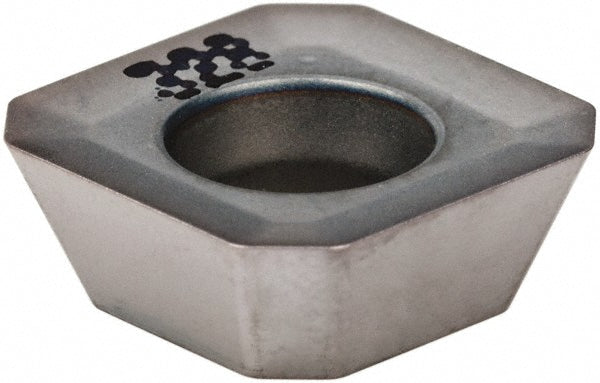

SEHT 1204AFN Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602917

Iscar

SEHT 1204AFN Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602917

MFR# 5602917ISO/ANSI# SEHT 1204AFNCat# SEHT 43AFN IC328Series ISCARMILL

$24.17List $31.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5602917 is a SEHT 1204AFN solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSEHT 43AFN IC328
Chip breakerAFN
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF45ST
Cutting edge effective length0.5000
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEHT
Iso codeSEHT 1204AFN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEHT 43AFN IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in1/2
