Iscar

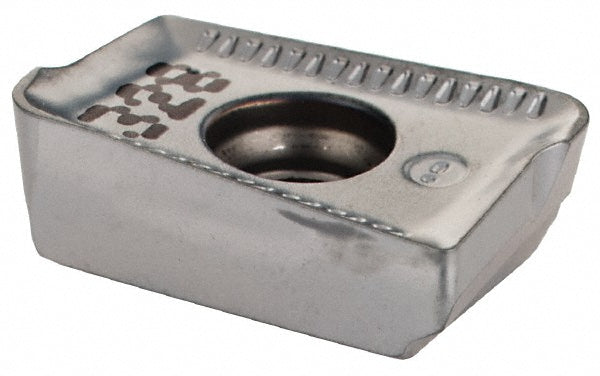

3M AXKT 130416R-PDRMM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5602944
MFR# 5602944ISO/ANSI# 3M AXKT 130416R-PDRMMCat# 3M AXKT 130416R-PDRMM IC328Series MILL2000
$24.91List $31.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5602944 is a 3M AXKT 130416R-PDRMM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi code3M AXKT 130416R-PDRMM IC328
Chip breakerMM
Coating finishTiCN
Coating processPVD
Corner radius0.0630
Cutter series compatibility3M AX13
Cutting edge effective length0.5040
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3310
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size13
Insert size code130416
Insert styleAXKT
Iso code3M AXKT 130416R-PDRMM
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog number3M AXKT 130416R-PDRMM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in11/64
Thickness range0.1500 to 0.1750
Width0.3310
