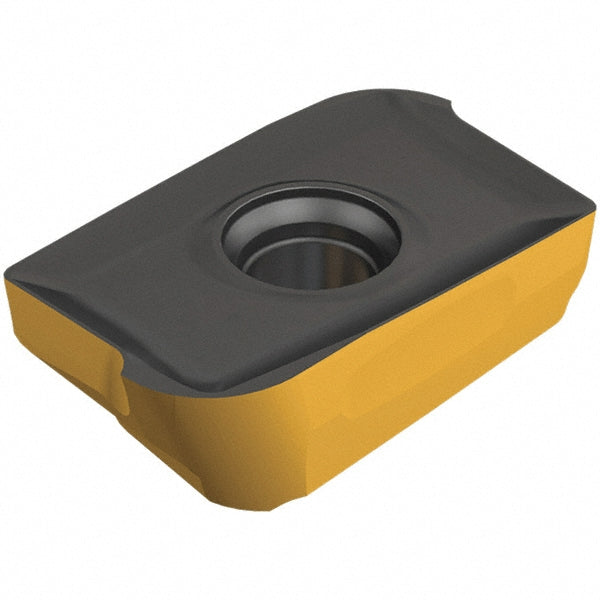

3M AXKT 200612R-PDR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602949
MFR# 5602949ISO/ANSI# 3M AXKT 200612R-PDRCat# 3M AXKT 200612R-PDR IC928Series MILL2000
$31.85List $40.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/32
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5602949 is a 3M AXKT 200612R-PDR solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi code3M AXKT 200612R-PDR IC928
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibility3M AX20
Cutting edge effective length0.7870
Cutting edge styleHoned
Included angle degree85
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size20
Insert size code200612
Insert styleAXKT
Iso code3M AXKT 200612R-PDR
Length0.8660
Length range0.7000 to 0.9000
Manufacturers catalog number3M AXKT 200612R-PDR IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.7870
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle26
Relief angle26
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in17/64
Thickness range0.2500 to 0.3500
Width in17/32
