Iscar

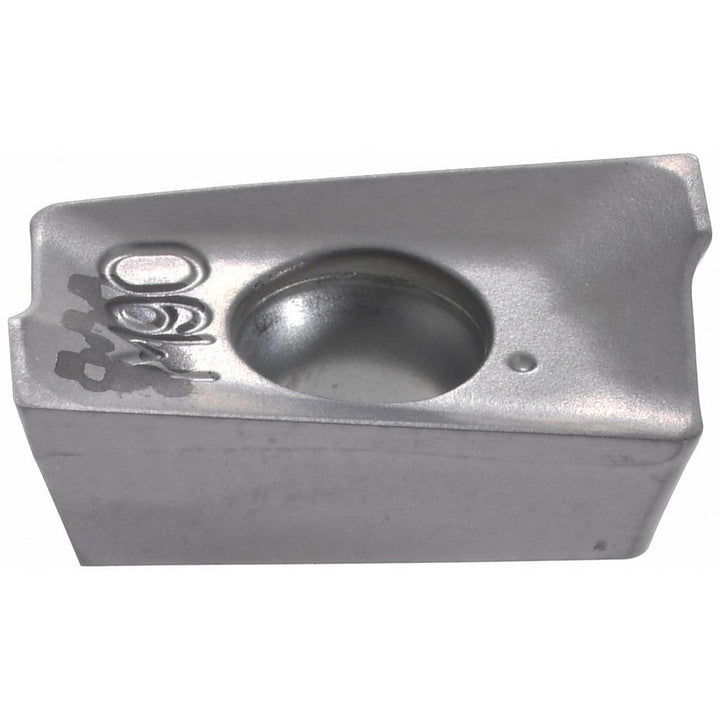

HM90 APCT 100302R-PDR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602960
MFR# 5602960ISO/ANSI# HM90 APCT 100302R-PDRCat# HM90 APCT 100302R-PDR IC928Series HELI2000
$26.30List $33.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5602960 is a HM90 APCT 100302R-PDR solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHM90 APCT 100302R-PDR IC928
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutter series compatibilityHM90-10
Cutting edge effective length0.3980
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.2740
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100302
Insert styleAPCT
Iso codeHM90 APCT 100302R-PDR
Length0.4590
Length range0.4500 to 0.5000
Manufacturers catalog numberHM90 APCT 100302R-PDR IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C3; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width0.2740
